·MGC、YGC型固定車箱式窄軌礦車 Bottom type narrow

MGC、YGC型固定車箱式窄軌礦車 Bottom type narrow gauge mine car

國家行業標準JB/T9027

本礦車適用于煤礦、金屬礦山、地下巷道及地表工業場地運輸?shù)V石、廢石等其他物料??蓲斐闪杏脵C(jī)車牽引、卸料用翻車機進行。

Such mine cars are used in coal mines, metal mines, underworkings and operation site to transport ores, barren rock, and other materials. They can be hung in rows and dragged by locomotives. Materials are unloaded through car dumpers.

型號規格Model 容積Volume 裝載量Loading weight 軌距Track base 牽引高度Dragging hight 牽引力Dragging force 外形尺寸
Overrall dimensions
質量Weigh t
m3 t mm mm KN m t
MGC0.5-6 0.5 1 600 320 60 1.3×0.8×1 0.34
MGC0.7-6 0.7 1.75 600 320 60 1.5×0.9×1.1 0.5
MGC1.1-6 1.1 1.8 600 320 60 2×0.9×1.2 0.58
MGC1.2-6 1.2 3 600 320 60 1.9×1.1×1.2 0.75
MGC1.2-7 1.2 3 762 320 60 1.9×1.1×1.2 0.8
MGC1.7-6 1.7 2.7 600 320 60 2.4×1×1.2 0.8
MGC1.7-9 1.7 2.7 900 320 60 2.4×1×1.2 0.9
MGC2-6 2 5 600 320 60 3×1.2×1.2 1.33
MGC2-7 2 5 762 320 60 3×1.2×1.2 1.35
MGC3.3-9 3.3 5.5 900 320 60 3.5×1.4×1.3 1.56
YGC0.5-6 0.5 1.25 600 320 60 2×0.9×1.2 0.61
YGC0.7-6 0.7 1.75 600 320 60 1.5×0.9×1.1 0.65
YGC1.2-6 1.2 3 600 320 60 1.9×1.1×1.2 0.72
YGC2-6 3 5 600 320 60 3×1.2×1.3 1.3
YGC4-7 4 10 762 320 60 3.7×1.3×1.6 1.62
YGC4-9 4 10 900 320 60 3.7×1.3×1.6 1.7
YGC10-7 10 25 762 430 79 7.2×1.5×1.6 7
YGC10-9 10 25 900 430 79 7.2×1.5×1.6 7.1

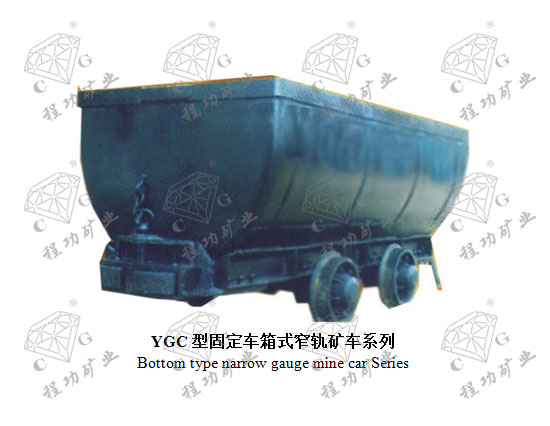

YGC型固定車箱式窄軌礦車系列 Bottom type narrow gauge mine car Series

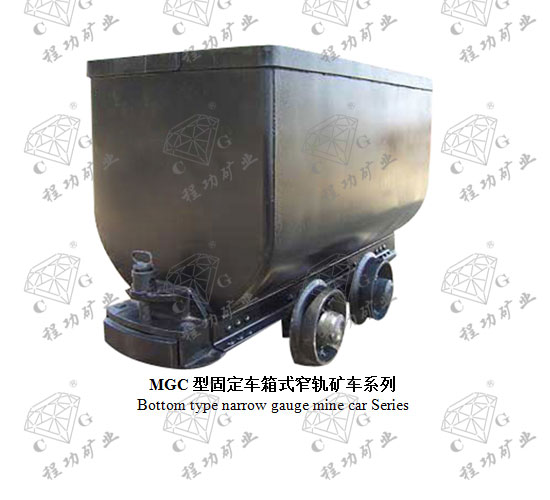

MGC型固定車箱式窄軌礦車系列 Bottom type narrow gauge mine car Series
